  Quality marking (CE)


  Marcatura CE


  All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

•

  CL class of electrical insulation

  Classification on the basis of the class of electrical insulation.


  Classe I


  Electrical device with basic electrical insulation. Must be connected to the ground circuit of the main electrical system.

•

  IP Protection index

  The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


  IP65


  Protection against solids - First IP figure
  6 Sealed against dust
  Protection against liquids - Second IP figure
  5 Protected against jets of water

Notes

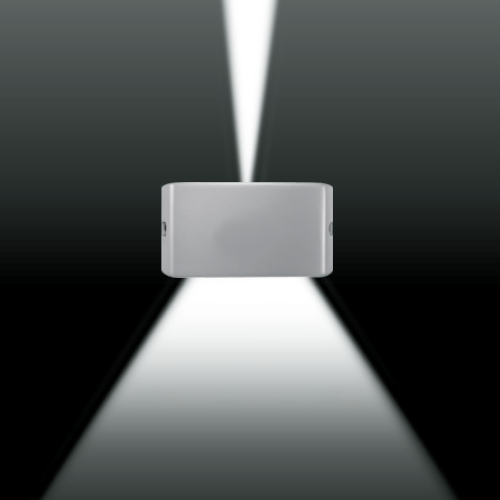

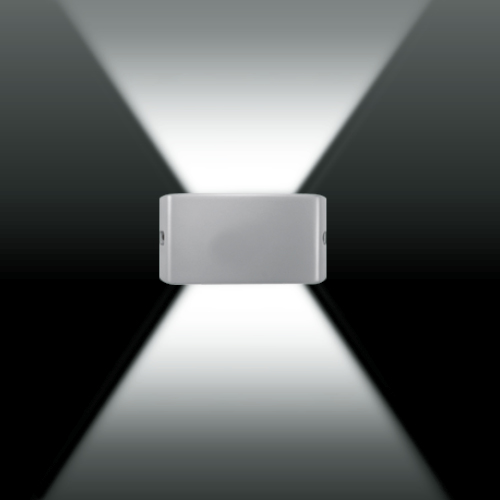

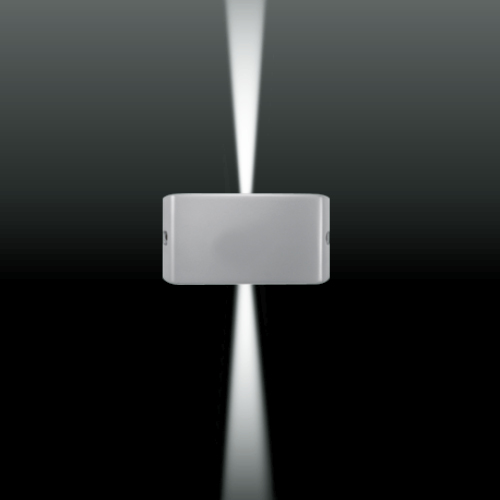

Available also with 40° light beam on request.

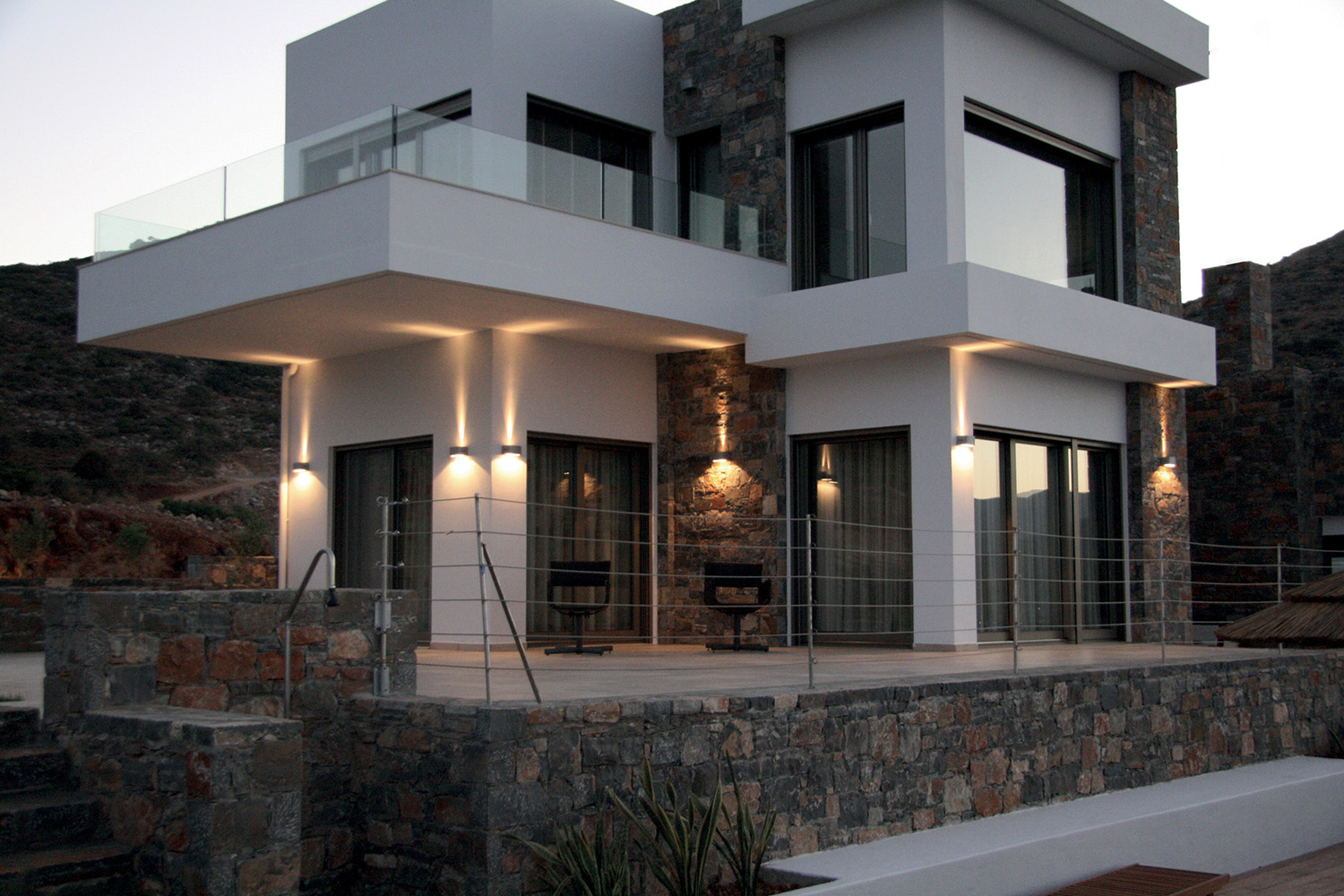

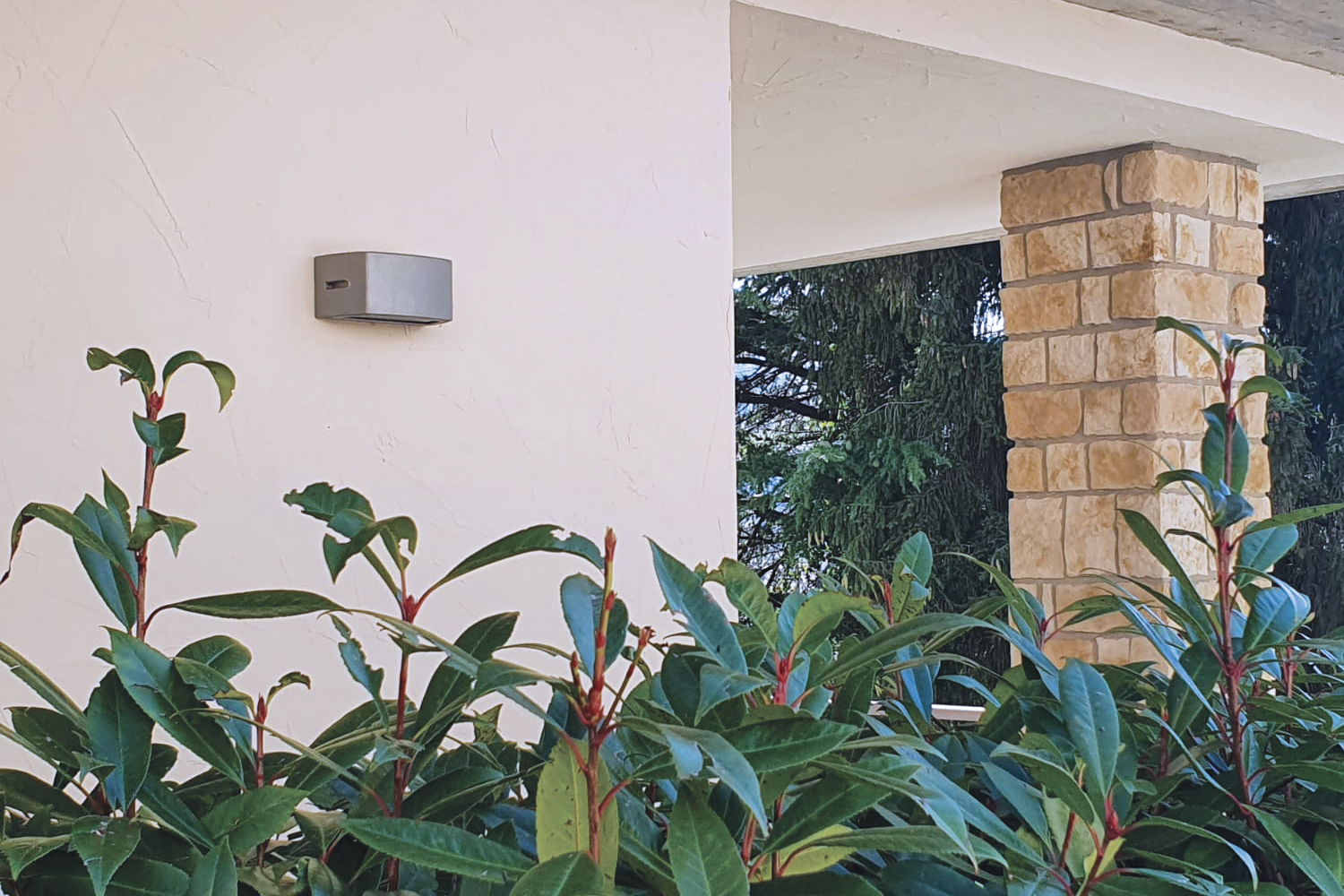

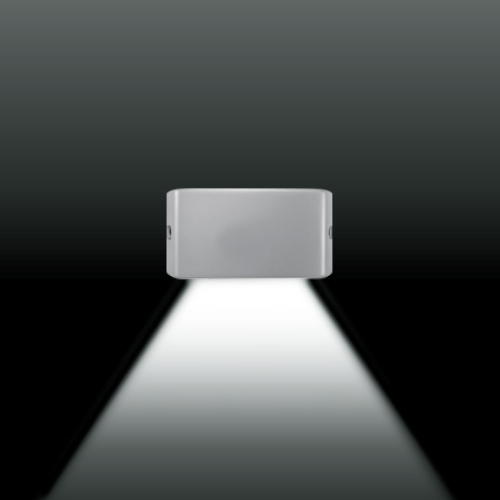

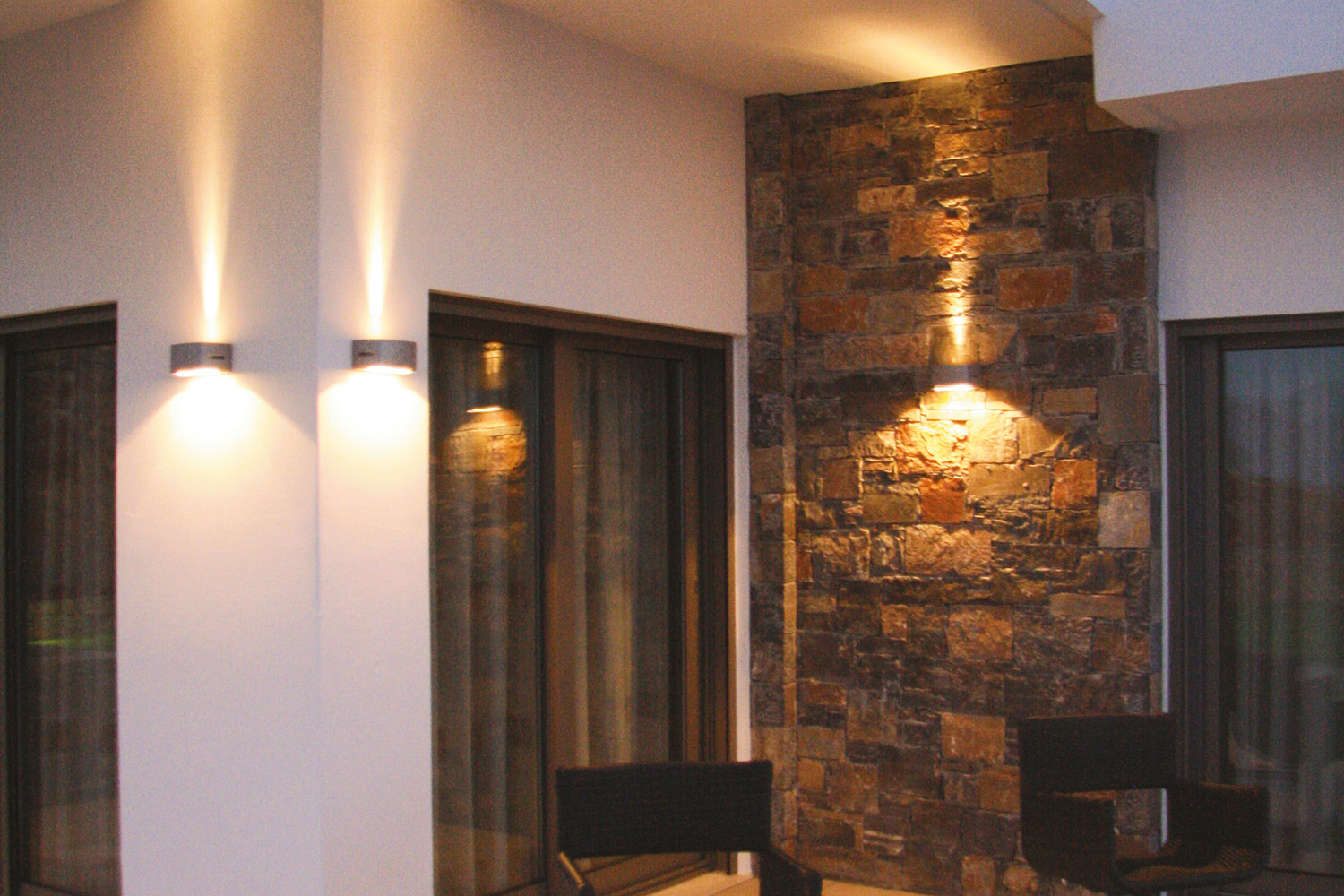

Wall mounting

Single power supply cables input

LED:
LED’s direct operation at 220/240V 50/60Hz. No power supply is required.

Impact Energy (J):
0,7
