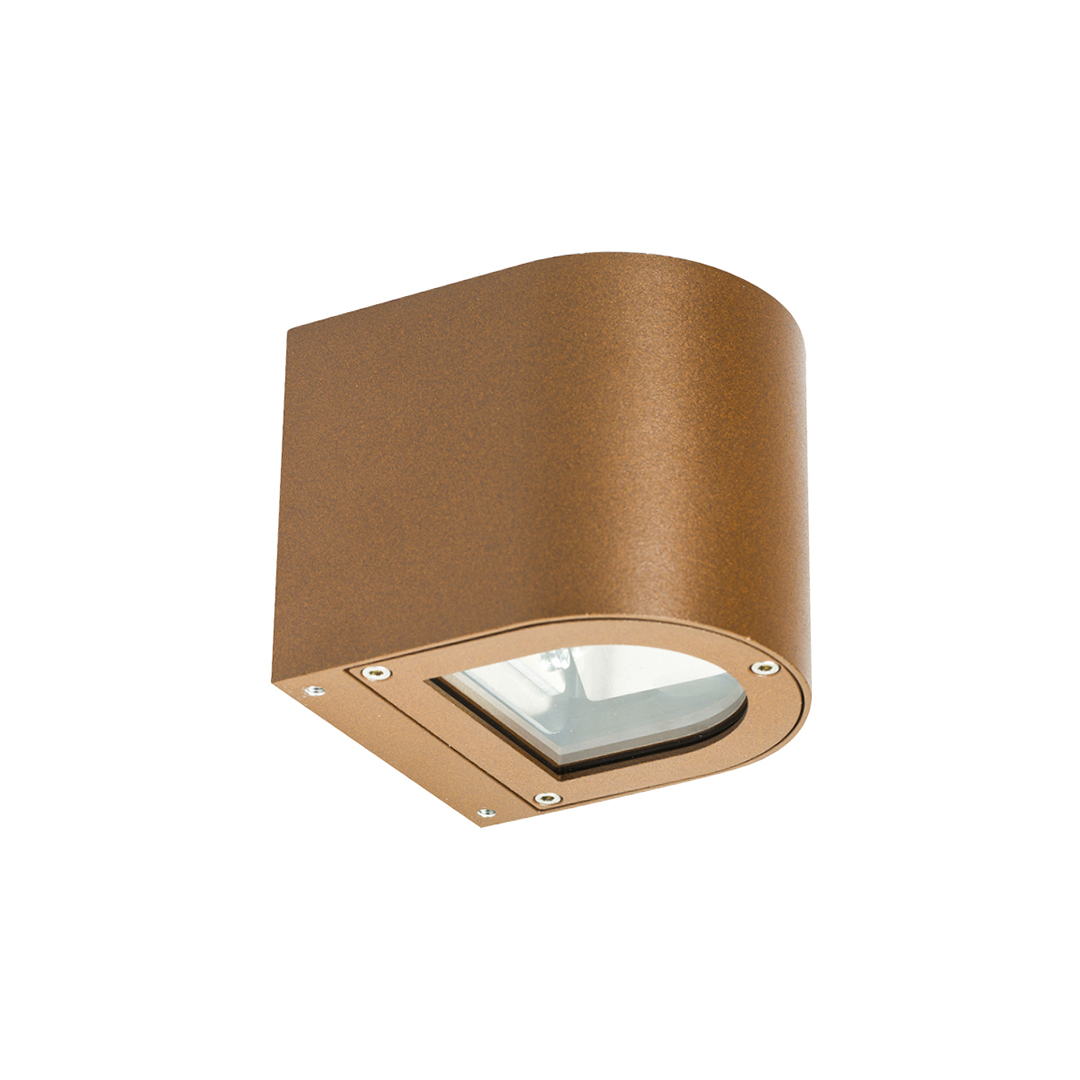

AMOS MINI

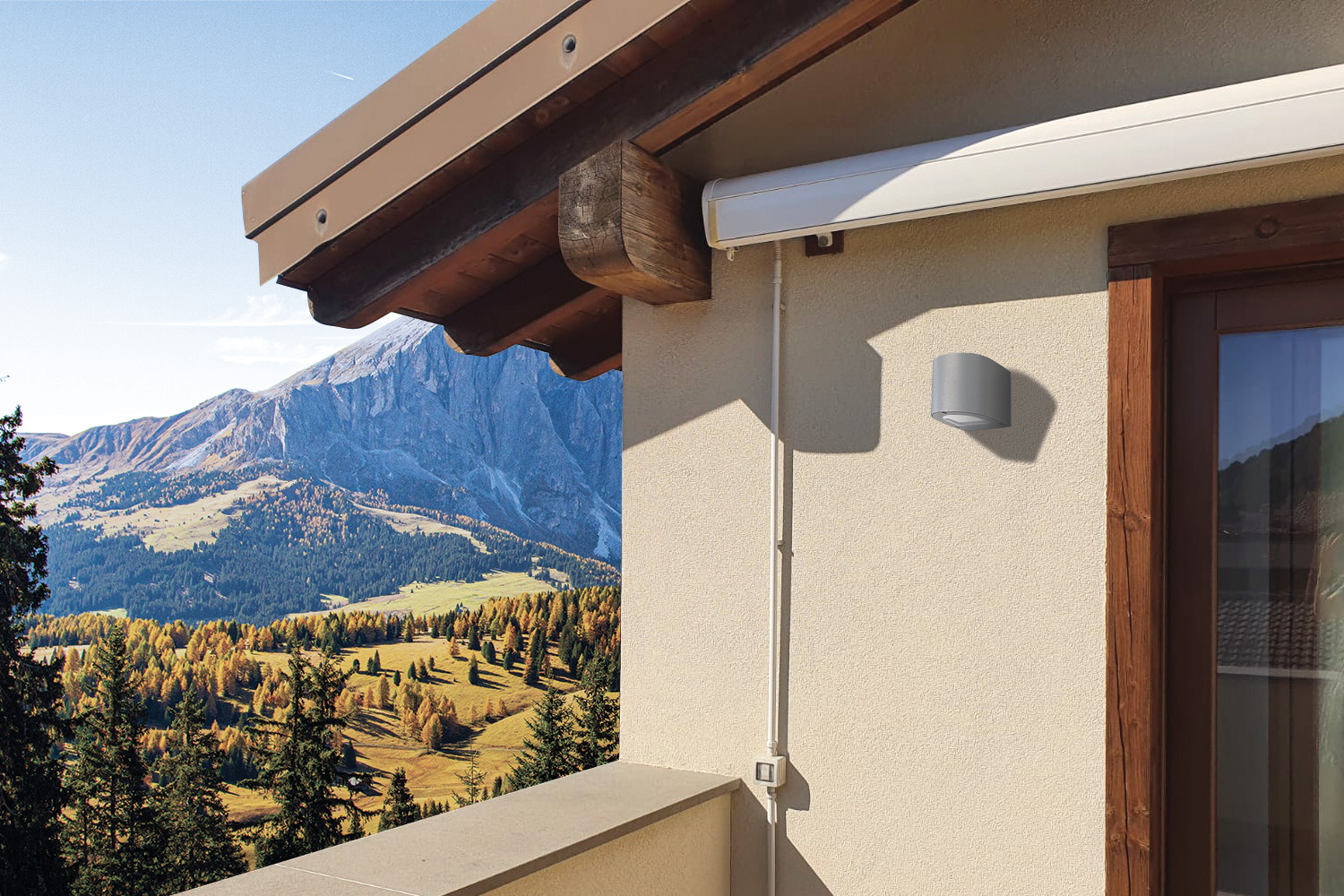

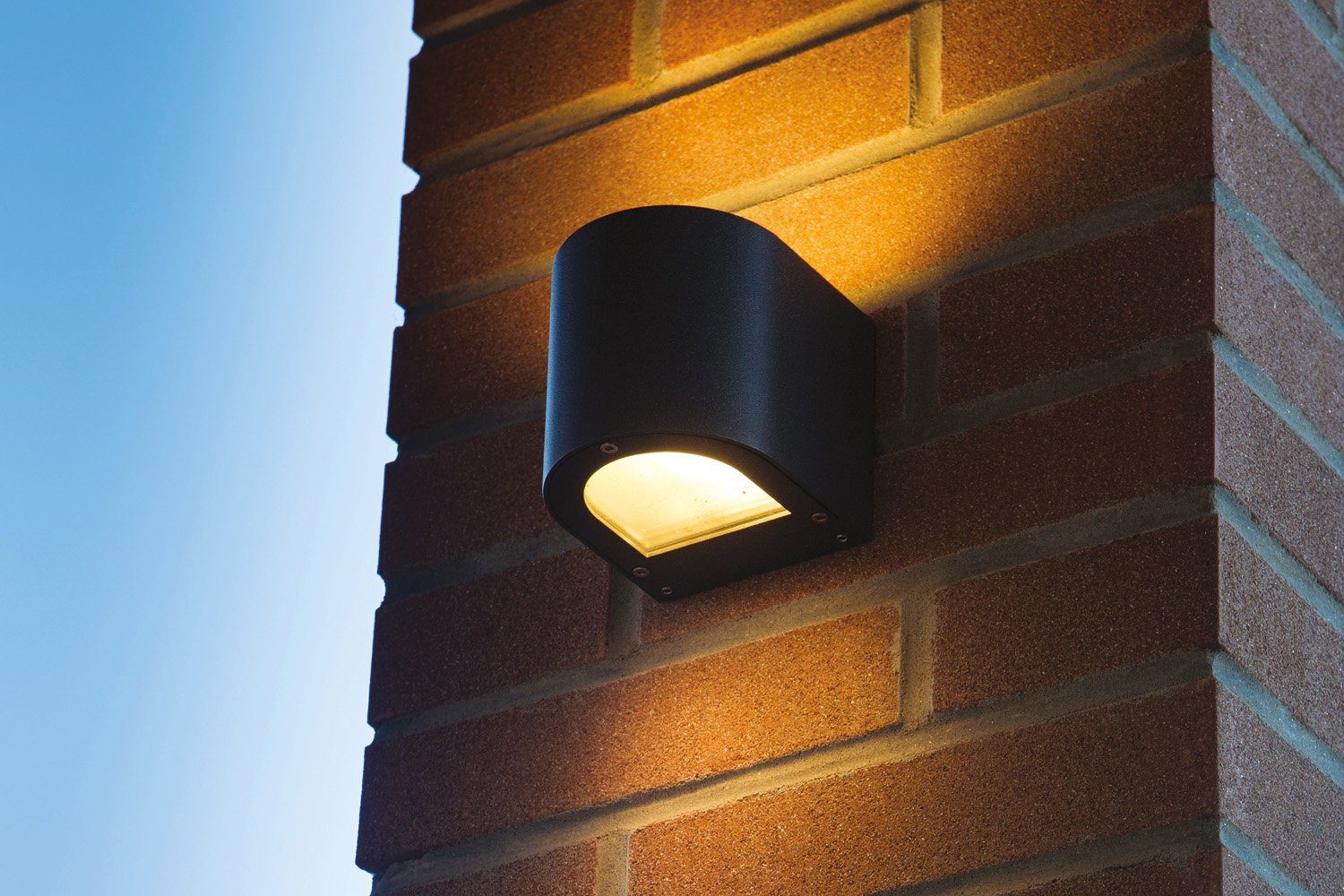

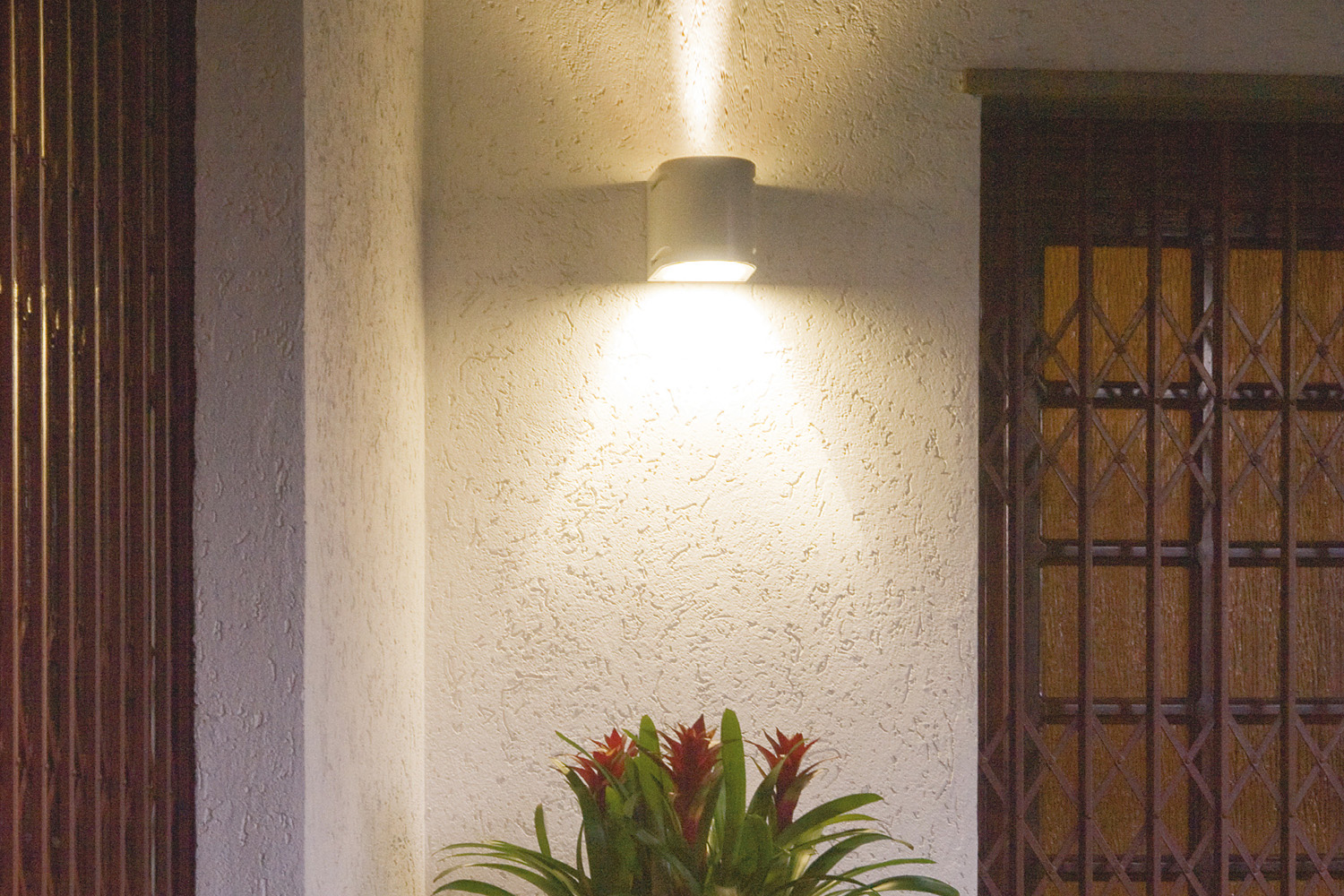

Wall outdoor and indoor luminaire with various light beams costructed of:

  • Painted die-cast aluminium structure
  • Tempered glasses or/and lenses
  • Aluminium reflector
  • Silicon gaskets
  • Stainless steel screws
  • Painting using high resistance to UV and corrosion polyester powders

Colours
  • Silver X=4

  • Anthracite X=9

  • Quality marking


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • Class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe I

    Electrical device with basic electrical insulation. Must be connected to the ground circuit of the main electrical system.

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP65

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    5 Protected against jets of water

  • The flammability of the supporting surface

    Classification on the basis of the flammability of the supporting surface


    The luminaire is suitable for mounting on normally flammable surfaces (temperature on supporting surface max. 90°C).

Notes

Available also with 40° light beam on request.

Wall mounting

Single power supply cables input

LED:
LED’s direct operation at 220/240V 50/60Hz. No power supply is required.

Impact Energy (J):
0,7

Information request
Product data sheet

AMOS MINI

8091

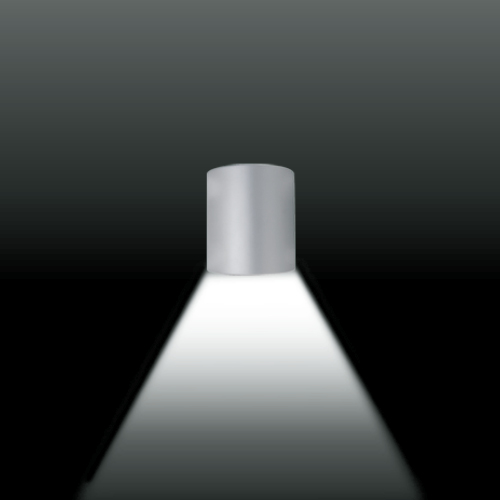

Mono direction light with one glass - ±70° light beam

Code Light source Power Voltage Lum.
Flux *
Socket Colour
Temperature
Cover’s
temperature
Glass surface
temperature
CEI
Zone **
Beam angle Light data Technical
drawing
Energy
label
                 Notes
8091.66X LED 4W 420 lm 4000 K

Energy class

Select language:

8091.67X LED 4W 400 lm 3000 K

Energy class

Select language:

8091.05X LED GU10 6W 425 lm 4000 K

Energy class

Select language:

Bulb enclosed to the luminaire
8091.06X LED GU10 6W 425 lm 4000 K

Energy class

Select language:

Bulb enclosed to the luminaire
Codice
specifico
Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Product data sheet

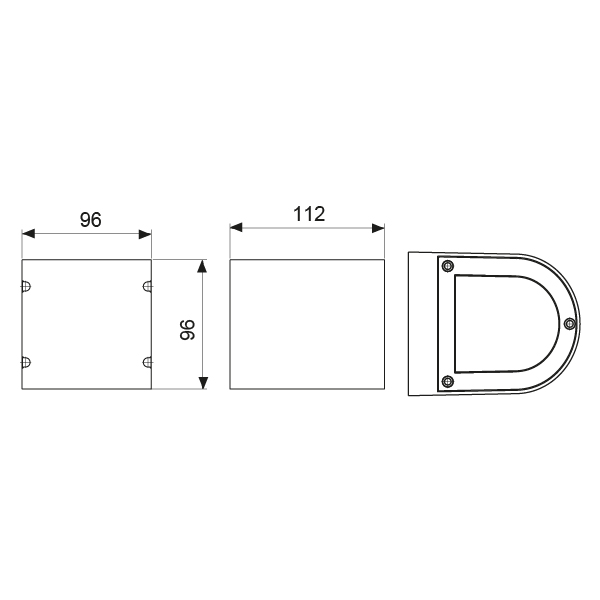

AMOS MINI

8092

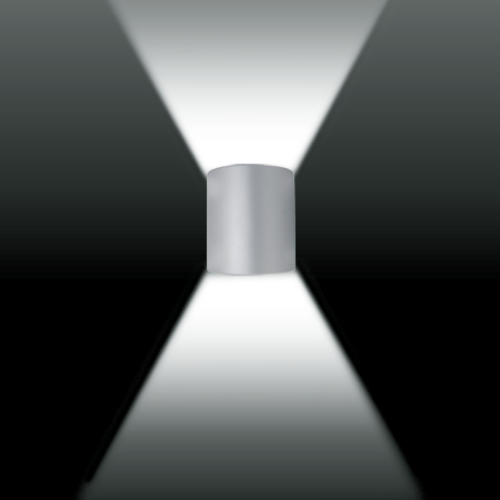

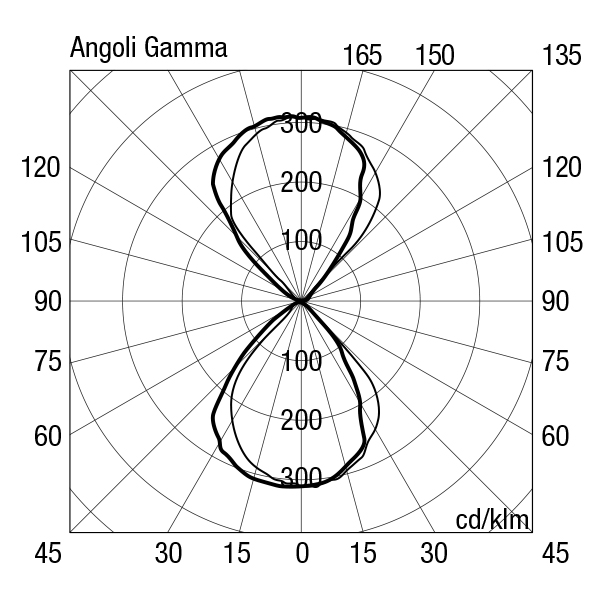

Double direction light with two glasses - ±70° light beams

Code Light source Power Voltage Lum.
Flux *
Socket Colour
Temperature
Cover’s
temperature
Glass surface
temperature
CEI
Zone **
Beam angle Light data Technical
drawing
Energy
label
                 Notes
8092.14X QT14 60W G9

Energy class

Select language:

8092.66X LED 2x4W 2x420 lm 4000 K

Energy class

Select language:

8092.67X LED 2x4W 2x400 lm 3000 K

Energy class

Select language:

Codice
specifico
Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Product data sheet

AMOS MINI

8093

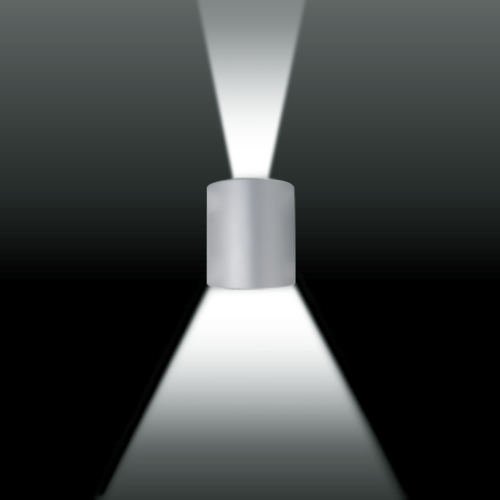

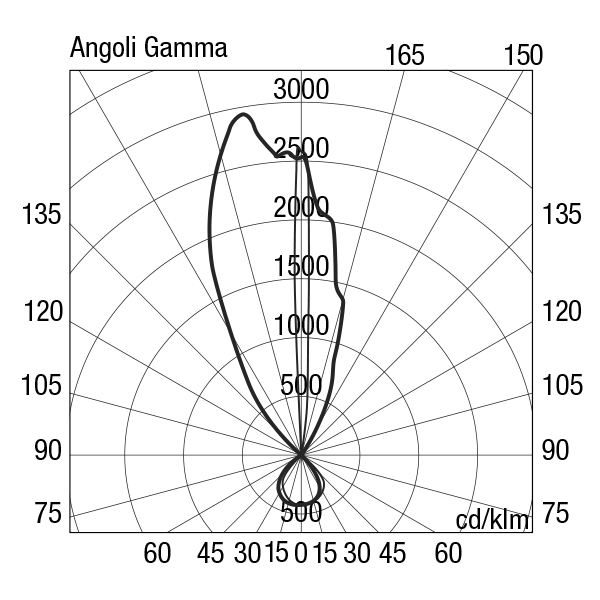

Double direction light with 1 lens ±10° and 1 glass ±70° light beam

Code Light source Power Voltage Lum.
Flux *
Socket Colour
Temperature
Cover’s
temperature
Glass surface
temperature
CEI
Zone **
Beam angle Light data Technical
drawing
Energy
label
                 Notes
8093.14X QT14 60W G9

Energy class

Select language:

8093.66X LED 2x4W 2x420 lm 4000 K

Energy class

Select language:

8093.67X LED 2x4W 2x400 lm 3000 K

Energy class

Select language:

Codice
specifico
Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.
