PRODUCT COMBO RECESSED

COMBO RECESSED - 5112 L 1500 mm

Information request
Colours
  • White X=2

  • Silver X=4

  • Quality marking (CE)


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • CL class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe III

    Device working with very low voltage (12V, 24V).

  • WALL RECESSED

    IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP66 - WALL RECESSED

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    6 Protected against waves

  • GROUND RECESSED

    IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP67 - GROUND RECESSED (incasso a terra)

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    7 Protected against immersion

Notes

Cod. A75 power supply IP67
The holder is enclosed to the luminaire

Recessed ground version

Recessed wall version

Symbol indicating the temperature of the touchable surfaces

The luminaire needs a remote power supply (supplied) IP67 / IP68

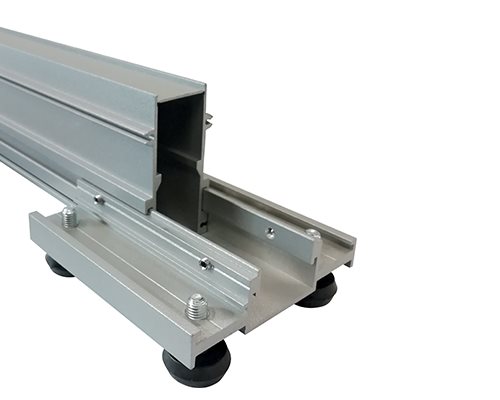

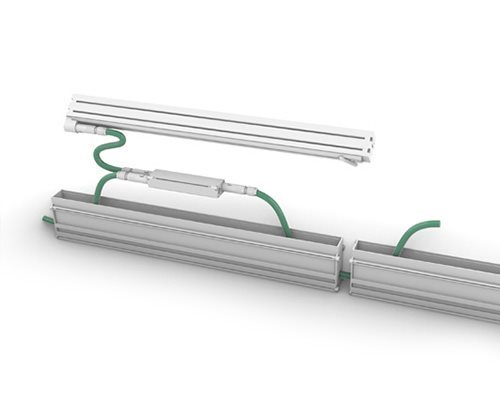

Can be provided for trough wiring with CN 51 and PT 51

On request

On request

Walkable luminaire max 500 Kgs

Impact Energy (J):
20

Product data sheet

COMBO RECESSED

5112 L 1500 mm

GROUND OR WALL RECESSED COMBO LINEAR TRIMLESS.
It is mandatory to use the formwork

Code Light source Power Voltage Lum.
Flux *
Socket Colour
Temperature
Surface
temperature
CEI
installation zone **
Beam angle Light data Technical
drawing
                 Notes
5112.66X LED 45W 24V 5550 lm 4000 K <40°C 2
5112.67X LED 45W 24V 5250 lm 3000 K <40°C 2
Codice
specifico
Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.
