PRODUCT OCEAN SPOT

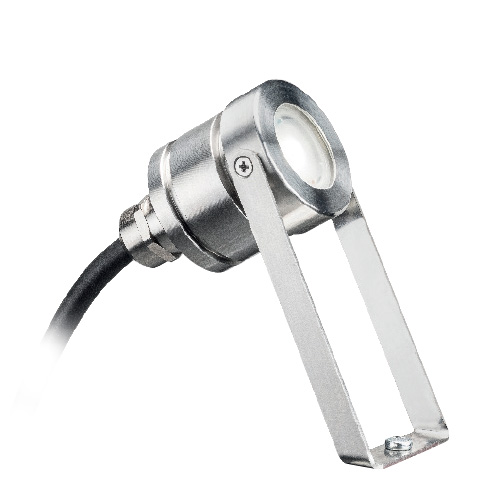

OCEAN SPOT - 4311

Information request
Code
Colours

There are no colors for the product.

  • Quality marking (CE)


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • CL class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe III

    Device working with very low voltage (12V, 24V).

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP67

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    7 Protected against immersion

Notes

Distance between driver and spotlight: max 20 mt

Floor mounting

Operating temperature -40°C  +50°C

Single power supply cables input

LED:
The luminaire needs a remote power supply (supplied only on request)

Impact Energy (J):
20

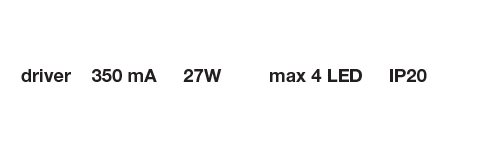

cod. A11:

PQ 51

ACCESSORY (on request)

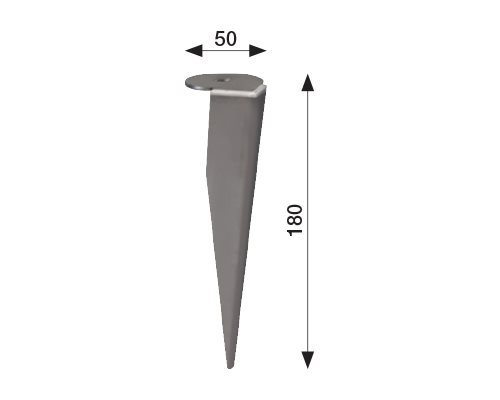

Stainless steel AISI 304 ground spike.
Product data sheet

OCEAN SPOT

4311

Disponibile con ottica 90°

Code Light source Power Voltage Lum.
Flux *		 Socket Colour
Temperature		 Surface
temperature		 CEI

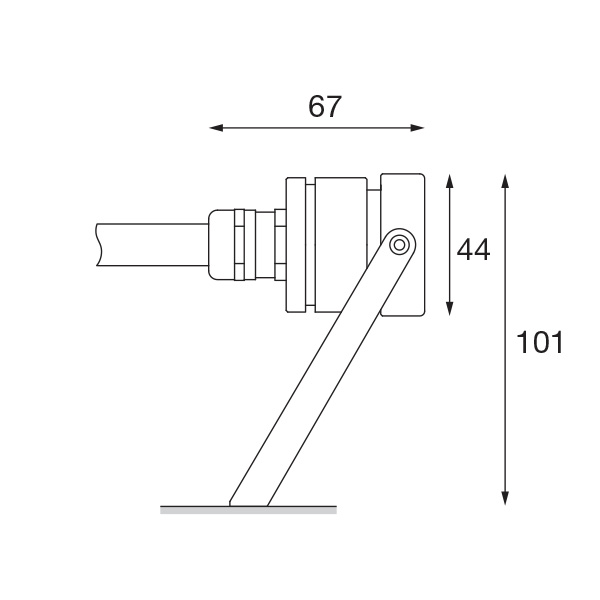

installation zone **		 Beam angle Light data Technical
drawing		                  Notes
4311.66.90X LED CRI85 5W 500 lm 4000 K 90°
4311.67.90X LED CRI85 5W 465 lm 2700 K 90°
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.

✕
