Certified by INTERNATIONAL DARK SKY ASSOCIATION (LED 3000 K version only): the product complies with all the regulations in force in Italy and with international provisions for the limitation of light pollution, if correctly installed.
A Dark Sky certified lamp is a quality product that respects the night environment (avoids glare, reduces light dispersion, avoids light pollution of the sky).
Energy class:
This product contains an energy efficiency class (D) light source that complies with Regulation (EU) No 2019/2015
Wall mounting
Single power supply cables input
LED:
The luminaire is supplied with a 220/240V 50/60Hz built-in power supply.
Impact Energy (J):
2
mono direction light
| Code | Light source | Power | Voltage | LED lum. Flux * |
Socket | Colour Temperature |
Surface temperature |
CEI installation zone ** |

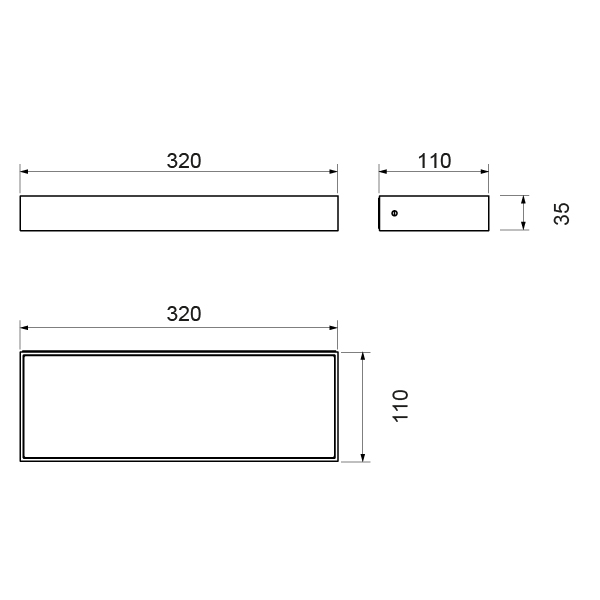

Beam angle | Light data | Technical drawing |
Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3820.66X | LED | 15W | 2100 lm | 4000 K |
|
|||||||
| 3820.67X | LED | 15W | 2000 lm | 3000 K |
|
| Codice specifico |
Fotometria |
|---|---|
| 2065.660 | Zip - 175 MB |
| 2065.670 | Zip - 175 MB |
view not available
* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance
** Standard CEI EN 60598-2-13 for ground recessed luminaires
