PRODUCT GEO Ø163

GEO Ø163 - 5090

Information request
Code
Colours

  • Silver X=4

  • Anthracite X=9

  • Quality marking


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • Class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe I

    Electrical device with basic electrical insulation. Must be connected to the ground circuit of the main electrical system.

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP67

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    7 Protected against immersion

  • The flammability of the supporting surface

    Classification on the basis of the flammability of the supporting surface


    The luminaire is suitable for mounting on normally flammable surfaces (temperature on supporting surface max. 90°C).

Notes

Die-cast aluminium cover.

Recessed ground version

Glass surface temperature T<70°C
(ambient temperature data of 15°C)

Double entrance of the supply cables with gland type M16 (ø 5÷10 mm). Use only flexible cables to grant protection against water exposure (IP).

LED:
The luminaire is supplied with a 220/240V 50/60Hz built-in power supply.

The holder must be recessed into the ground providing a drainage-gravel for at least 30 cm.

CS 91:
Technopolymer holder Ø 158/123 mm - h 204 mm

Maximum load:
Kg 2000 at 30 km/h max speed

Impact Energy (J):
10

Product data sheet

GEO Ø163

5090

LED available in various optics : 16°, 40°, 74°.

Code Light source Power Voltage Lum.
Flux *		 Socket Colour
Temperature		 Cover’s
temperature		 Glass surface
temperature		 CEI
Zone **		 Beam angle Light data Technical

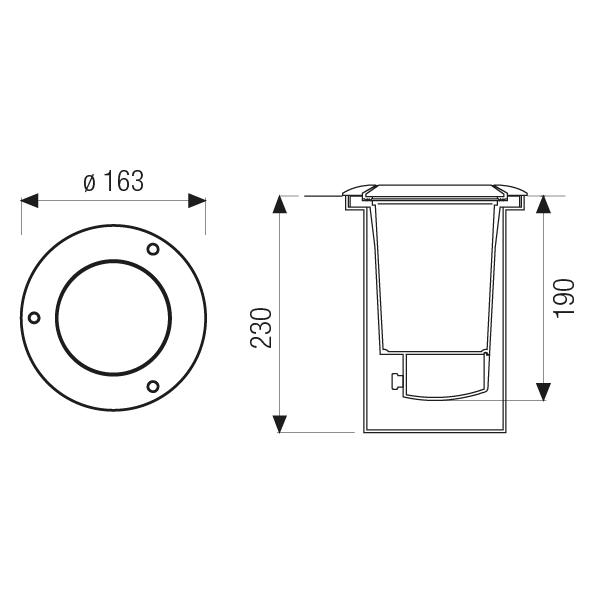

drawing		 Energy
label		                  Notes
5090.06X PAR 30 LED 10W 940 lm E27 3000 K 5 25°

Energy class

Select language:

 Bulb enclosed to the luminaire
5090.20X LED COB 13,7W 2070 lm 4000 K <40°C 5

Energy class

Select language:
5090.21X LED COB 13,7W 2000 lm 3000 K <40°C 5

Energy class

Select language:

 Symmetrical reflector
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.

✕

recessed / GEO Ø163
